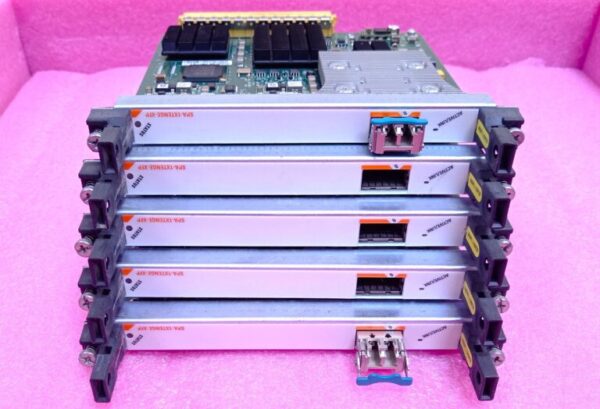

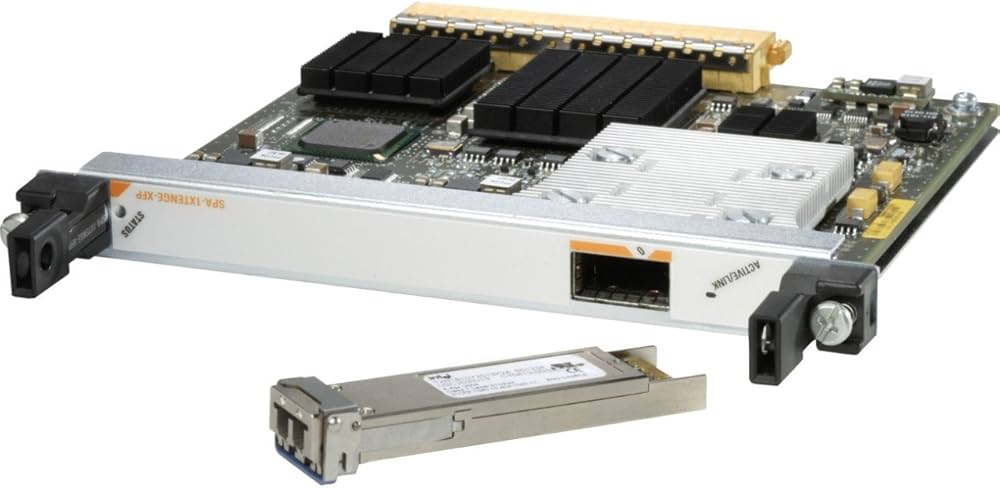

Cisco SPA-1XTENGE-XFP 1 Port 10GBE Shared Port Adapter

Sale!
Cisco SPA-1XTENGE-XFP 1 Port 10GBE Shared Port Adapter
Cisco SPA-1XTENGE-XFP 1 Port 10GBE Shared Port Adapter - Image 2
,

Cisco SPA-1XTENGE-XFP 1 Port 10GBE Shared Port Adapter

Original price was: 4.000,00د.إ.Current price is: 3.699,00د.إ.

Al Safa Computer, the leading IT asset management company in the UAE, specializes in Buying & Selling surplus inventories, excess stocks, and aging IT assets.

Availability: 22 in stock

Categories: , Brand:

This SPA-1XTENGE-XFP is 100% genuine Cisco product. It won’t have any compatibility problem with your Cisco devices. And the Cisco SPA-1XTENGE-XFP 1-port 10Gigabit Ethernet Shared Port Adapter.



 Product Specifications



Features

Descriptions

Product Compatibility

• Cisco Catalyst 6500 Series Switches

• Cisco 7600 Series Routers

• Cisco 12000 Series Routers

• Cisco XR 12000 Series Routers

Port Density per SPA

One 10-Gigabit Ethernet port

Physical Interface

10-Gbps XFP optics

LED Indicators

SPA status – Bicolor green and amber LEDs encode the SPA status as follows:

• LED off: SPA is powered off

• LED amber: SPA is powered on and initializing

• LED green: SPA is powered on and operational

In addition to the status LED, the SPAs also have a bicolor, surface-mount, right-angle LED dedicated to each port to indicate port status. The green and amber LEDs encode the port status as follows:

• LED off: Port is not enabled by software

• LED amber: Port is enabled by software, but there is a problem with the Ethernet link

• LED green: Port is enabled by software, and there is a valid Ethernet link

Features and Functions

• Full-duplex operation

• 802.1Q VLAN termination

• Jumbo frames support (9188 bytes)

• Support for command-line interface (CLI)-controlled online insertion and removal (OIR)

• 802.3x flow control

• Up to 4000 VLANs per SPA

• Up to 5000 MAC accounting entries per SPA (source MAC accounting on the ingress and destination MAC accounting on the egress)

• Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port

• Per-port byte and packet counters for policy drops; oversubscription drops; cyclic-redundancy-check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets

• Per-VLAN byte and packet counters for policy drops; oversubscription drops; and unicast, multicast, and broadcast packets

• Per-port byte counters for good bytes and dropped bytes

Other software features supported:

• Ethernet over Multiprotocol Label Switching (EoMPLS)

• QoS

• Hot Standby Router Protocol (HSRP)

• Virtual Router Redundancy Protocol (VRRP)

Reliability and Availability

OIR of the SPA within the SIP and the optics within the SPA

Network Management

Network management using:

• Field-replaceable XFP modules

• Host-system CLI

• Simple Network Management Protocol (SNMP)

Inventory- and asset management-related MIBs:

• Entity-MIB (RFC 2737)

• Cisco-entity-asset-MIB

Fault management:

• Cisco-entity-field-replaceable unit (FRU)-control-MIB

• Cisco-entity-alarm-MIB

• Cisco-entity-sensor-MIB

Physical interface management:

• IF-MIB

• Etherlike-MIB (RFC 2665)

Other MIBs:

• Remote Monitoring (RMON)-MIB (RFC 1757)

• Cisco-class-based-QoS-MIB

• MPLS-related MIBs

• Ethernet MIB/RMON

Physical Specifications

• Weight: 0.75 lb (0.34 kg)

• Height: 0.8 in. (2.03 cm) (single height)

• Width: 6.75 in. (17.15 cm)

• Depth: 7.28 in. (18.49 cm)

Power

19.1W

Environmental Specifications

• Storage temperature: -38 to 150°F (-40 to 70°C)

• Operating temperature, nominal: 32 to 104°F (0 to 40°C)

• Operating temperature, short-term: 32 to 131°F (0 to 55°C)

• Storage relative humidity: 5 to 95% relative humidity

• Operating humidity, nominal: 5 to 85% relative humidity

• Operating humidity, short-term: 5 to 90% relative humidity

• Operating altitude: -60 to 4000 meters

Compliance and Agency Approvals

Safety

• UL 60950-1

• CSA C22 No. 60950-1

• EN 60950-1

• IEC 60950-1

• AS/NZS 60950

• EN 60825-1

• EN 60825-2

• 21 CRF 1040

EMC

• CFR 47, FCC Part 15—Class A

• ICES 003—Class A

• CISPR 22 Class A

• EN 55022 Class A

• EN 300386 Class A

• AS/NZS Class A

• VCCI-Class B

• EN 50082-1

• EN 55024

• IEC/EN61000-4-2 Electrostatic Discharge Immunity (8-kV contact, 15-kV air)

• IEC/EN61000-4-3 Radiated Immunity (10 V/m)

• IEC/EN61000-4-4 Electrical Fast Transient Immunity (2-kV power, 1-kV signal)

• IEC/EN61000-4-5 Surge AC Port (4-kV CM, 2-kV DM)

• IEC/EN61000-4-5 Surge Signal Port (1-kV indoor, 2-kV outdoor)

• IEC/EN61000-4-5 Surge DC Port (1 kV)

• IEC/EN61000-4-6 Immunity to Conducted Disturbances (10 Vrms)

• IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m)

• IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations

Telecom

• IEEE 802.3ae (10-Gigabit Ethernet interface SPA)

Industry Standards

The Cisco 1-Port 10-GE SPA is designed to meet the following requirements (some qualifications are currently in progress):

• SR-3580-Network Equipment Building Standards (NEBS): Criteria levels (Level 3 compliant)

• GR-63-CORE-NEBS: Physical protection

• GR-1089-CORE-NEBS EMC and safety

Brand

Cisco
