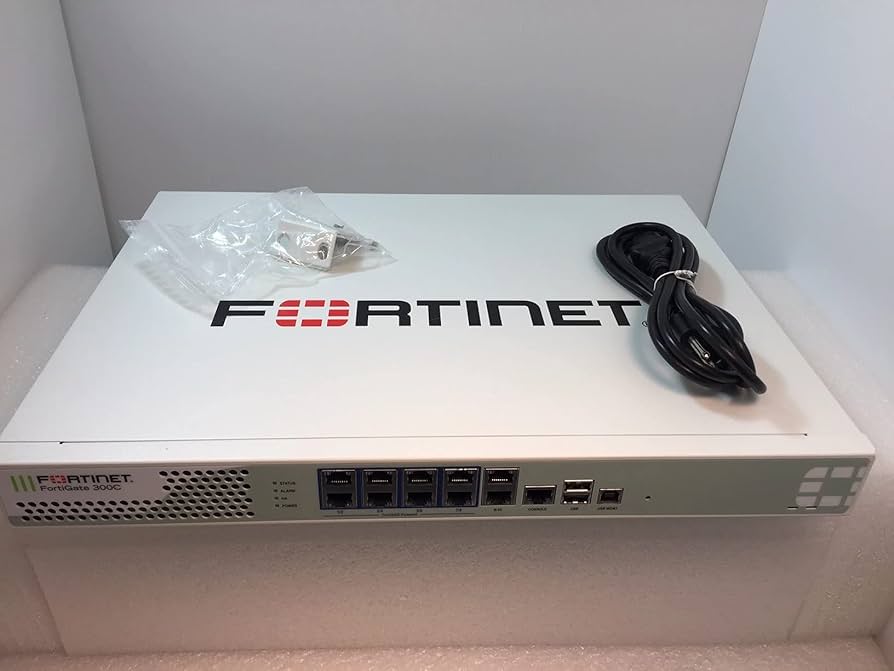

The highly versatile FortiGate-300C features one of the highest port densities and price/performance ratios of any product in its class to deliver advanced firewall, VPN, application control and intrusion prevention system functionality in a single appliance.

Specifications:

General

• Device Type: Security appliance
• Width: 17 in
• Depth: 12.6 in
• Height: 1.8 in
• Weight: 14.11 lbs

Processor / Memory / Storage

• Hard Drive: SSD 32 GB x 1

Networking

• Form Factor: External
• Connectivity Technology: Wired
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Switching Protocol: Ethernet
• Network / Transport Protocol: IPSec
• Performance: Firewall throughput (1518/512-byte packet size): 8 Gbps ¦ Firewall throughput (64-byte packet size): 8 Gbps ¦ VPN throughput (512-byte packet size): 4.5 Gbps ¦ Proxy-based antivirus throughput: 200 Mbps ¦ IPS throughput: 800 Mbps ¦ VPN throughput (SSL): 200 Mbps ¦ Flow-based antivirus throughput: 550 Mbps
• Capacity: Client to gateway IPSec VPN tunnels: 10000 ¦ Virtual domains: 10 ¦ User licenses: unlimited ¦ Gateway to gateway IPSec VPN Tunnels: 6000/3000 ¦ SSL VPN users: 500 ¦ Concurrent TCP sessions: 1000000 ¦ New sessions per second: 35000 ¦ Policies: 40000/20000
• Features: Firewall protection, VPN support, content filtering, antivirus analysis, Intrusion Prevention System (IPS)
• Encryption Algorithm: SSL

Expansion / Connectivity

• Interfaces: 10 x 1000Base-T – RJ-45 ¦ 1 x management – RJ-45 ¦ 2 x USB – Type A ¦ 1 x USB – Type B

Miscellaneous

• Compliant Standards: UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, FCC Part 15 A

Power

• Power Device: Internal power supply
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Consumption Operational: 128 Watt

Environmental Parameters

• Min Operating Temperature: 32 °F
• Max Operating Temperature: 104 °F
• Humidity Range Operating: 5 – 90% (non-condensing)
