Brand Name: Cisco

Product Series: Nexus 9000 Series

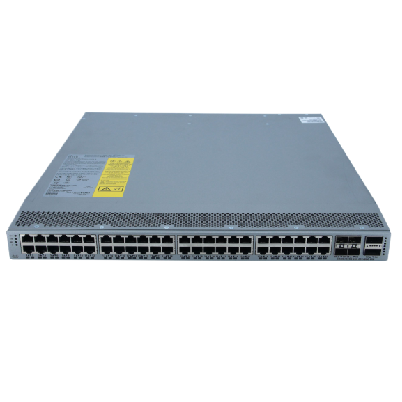

Product Model: N9K-C9348GC-FXP

Product Type: Switch

• Typical Power (AC/DC) : 178W
• Airflow : Port-side intake and exhaust
• Fans : 3
• RS-232 Serial Ports :1
• SSD Drive : 128 GB
• Downlink Supported Speeds : 100-Mbps and 1-Gbps speeds
• Weight (chassis) : 14.2 lb (6.44 kg)
• CPU : 4 cores
• System Buffer : 40 MB
• Management Ports : 1 RJ-45 and 1 SFP+
• System Memory : 24 GB
• Maximum Power (AC/DC) : 287W
• MTBF (Hours) : 257,860
• Acoustics (50% fan speed) : 67.5 dBA
• Input voltage (DC) : –48 to –60V
• Acoustics (100% fan speed) : 81.6 dBA
• Ports : 48 x 1-GBASE-T ports, 4 x 10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports
• Input voltage (AC): 100 to 240V
• Acoustics (70% fan speed) : 73.2 dBA
• Dimensions (inches) :1.72 x 17.3 x 19.7 in.
• Frequency (AC) : 50 to 60 Hz
• Power Supplies (up to 2) : 350W AC, 440W DC
• Dimensions (metric) : 4.4 x 43.9 x 49.9 cm
• USB Ports : 1
• RoHS compliance : Yes
